Honeywell C Wire Adapter Install

Alright, grab a coffee, pull up a chair. Let me tell you a story – not about a hero slaying a dragon, but about a modern-day warrior tackling something arguably more fearsome: ancient house wiring. Specifically, we’re talking about that elusive, often maddening, C wire, and how a little adapter from Honeywell can turn you into an HVAC installation superstar. Or at least, someone who doesn't have to change their smart thermostat batteries every three weeks.

You know the drill. You finally splurged on that fancy smart thermostat. It promises to learn your habits, save you money, and probably even make you toast in the morning (okay, maybe not that last one). You unbox it, you’re hyped, you get to the wiring… and then you see it. Your old, humble thermostat has an R, a G, a W, maybe a Y. But where, oh where, is the C wire? The common wire. The one that actually powers the darn thing continuously, so it doesn't have to beg for batteries like a neglected houseplant.

If you're anything like me, your DIY skills peak at assembling IKEA furniture… with most of the parts. So staring at a wall of wires and realizing your house was built back when "smart" meant "has indoor plumbing" can be a little daunting. The C wire, you see, provides a consistent return path for 24V AC power. Without it, your smart thermostat is running on borrowed time (and batteries!), constantly trying to steal power from the heating or cooling cycles, which is about as efficient as a hamster on a treadmill trying to power a skyscraper.

Enter the Hero: The Honeywell C Wire Adapter!

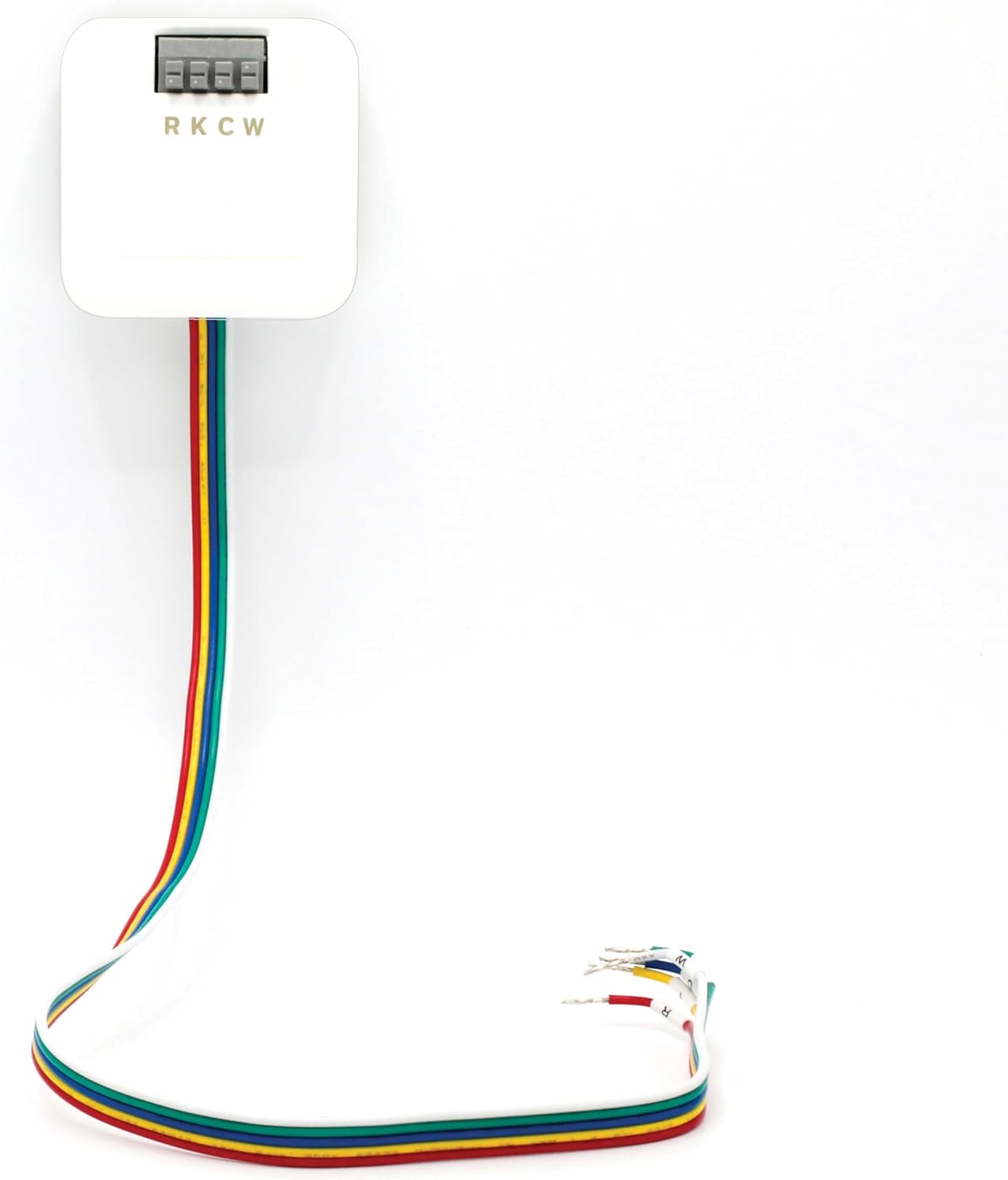

This little gadget, folks, is less a piece of electronics and more a peace offering to the gods of home automation. It’s like a tiny, magical translator for your thermostat, allowing it to speak the language of modern power requirements without you having to re-wire your entire house (and trust me, you don't want to re-wire your entire house, unless your hobby is setting off circuit breakers).

So, you’ve got the adapter. You’ve got the dream of a constantly-powered smart thermostat. Now what? First rule of DIY wiring: Thou shalt turn off the power! Seriously. Find that circuit breaker for your furnace or air handler. Flip it. Double-check it’s off. My general rule of thumb: if you’re not sure, trip it like you’re doing the limbo under a laser grid. Trust me, it’s far less dramatic than an unplanned electrical light show.

Step 1: The Thermostat Side - Where the Magic Begins

Carefully remove your old thermostat from the wall. Take a picture of the existing wiring – this is your "before" shot, and your emergency escape plan if things go sideways. Label those wires like they’re priceless artifacts: R (power), G (fan), W (heat), Y (cool). If you have other wires, label those too. The adapter is going to work its magic by essentially borrowing one of these wires to create a phantom C wire.

Now, you’ll connect the adapter’s wires. It'll have a few, usually color-coded. The crucial bit here is that the adapter is designed to intercept and redirect signals. You’ll connect the original thermostat wires to the designated spots on the adapter, and then the adapter’s output wires to your new smart thermostat. It's like a tiny switchboard operator, making sure everyone gets their calls.

For example, often the adapter will take your existing G (fan) wire and re-purpose it to be the C wire from the thermostat's perspective. Don't fret! The adapter handles the trickery, so your fan will still work. It's like a secret agent performing multiple duties.

Step 2: The Furnace Side - Meeting the Beast (It's Friendly, Mostly)

This is where some people get a little squeamish. You need to open up your furnace or air handler. Don't worry, it's not going to jump out at you. Inside, you'll find a control board, a veritable playground of little terminals. Again, take a picture! This is your second emergency escape plan, and proof you faced the mechanical heart of your home.

Locate the same R, G, W, Y terminals you saw at the thermostat, but this time on the furnace board. And guess what? You'll likely see a beautiful, glorious, often unused C terminal waiting patiently for its moment in the sun. This is where the adapter's dedicated C wire (usually blue, but always check your adapter's instructions!) gets connected. If there are other C wires already there, just add yours alongside them. It's a party!

Now, here's the clever bit: the adapter will have other wires that need to connect to the furnace terminals. These wires will also connect to the same terminals as your original wires coming from the thermostat. So, for example, the original R wire from the thermostat, plus the adapter's R wire, will both connect to the R terminal on the furnace board. You’re essentially piggybacking, creating a clever little circuit that allows the adapter to draw constant power.

Step 3: The Moment of Truth!

Once everything is connected – adapter to furnace, adapter to thermostat – double-check every single connection. Wiggle the wires gently to ensure they're snug. Close up the furnace panel. Head back to the breaker box, take a deep breath, and flip the power back on!

If all goes well, your smart thermostat will spring to life, asking you to set it up, glowing with a newfound sense of purpose. No more "low battery" warnings, no more frantic scrambling for AAAs in the dark. Your smart thermostat now has a steady stream of power, ready to serve your every temperature whim. You, my friend, have just outsmarted your house's ancient wiring, and you didn't even need an electrical engineering degree.

So, next time you're sipping your coffee, basking in the glory of your perfectly regulated home, remember the humble Honeywell C Wire Adapter. It's a small device that solves a big problem, proving once again that sometimes, the simplest solutions are the most ingenious. And now, you can confidently tell your friends, "Oh, the C wire? Yeah, I handled that. No biggie." And maybe, just maybe, they'll believe you.
