How Does A Cantilever Snap Joint Work

Ever wrestled with a stubborn plastic container lid? Or maybe you've snapped together two pieces of a toy? Chances are, you've encountered the unsung hero of modern joining: the cantilever snap joint.

The Mystery of the Click

So, what exactly is this magical mechanism? It's not glue. It's not screws. It's pure, unadulterated plastic flexing its muscles.

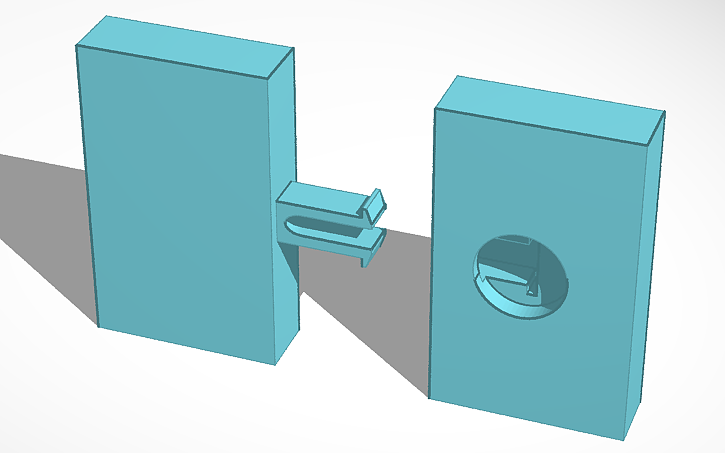

Think of it as a tiny, built-in, reusable hook. One part has a protruding feature – the hook. The other part? That's got a corresponding recess, or the catch.

My unpopular opinion? It's basically the plastic version of a really good handshake. Firm, secure, and maybe a little too enthusiastic sometimes.

The Cantilever in Action

The "cantilever" part is key. It's the flexible arm that allows the hook to bend and spring back.

Imagine a diving board. That's a cantilever! Fixed at one end, free to bend at the other.

As you push the two parts together, the hook slides along the surface. It's forced to deflect – like bending that diving board.

Then, with a satisfying click, the hook pops into the catch. The cantilever springs back, locking the two pieces together. Ta-da! Instant connection.

Deconstructing the "Click"

That click is more than just a sound. It's the sound of physics working its magic.

It signifies the hook clearing the obstacle and settling into its new home. That tiny little recess is now its permanent place.

The shape of the hook and catch are crucial. They're designed to allow easy assembly but resist accidental disassembly.

It's all about angles and friction. That is how the designer makes it easy for it to slide in. They also ensure it's difficult to pull straight out.

The Unsung Hero of Design

Cantilever snap joints are everywhere! From phone cases to car interiors, they're holding our world together, one click at a time.

They're cheap to manufacture. They require no additional fasteners. And they're surprisingly strong.

Okay, maybe not as strong as a welded joint. But strong enough for most everyday applications.

And let's be honest, who wants to weld their phone case together?

The Dark Side of the Snap

Of course, even the mighty snap joint has its weaknesses. Repeated flexing can weaken the cantilever.

Excessive force can break the hook or the catch. And sometimes, they just plain refuse to cooperate.

Ever tried to disassemble a particularly stubborn snap-fit component? It can feel like a battle of wills.

My other unpopular opinion? Sometimes, a well-placed screw is just easier.

Materials Matter

The choice of plastic is critical for a successful snap joint. It needs to be flexible enough to bend. And strong enough to withstand repeated stress.

Polypropylene and ABS are common choices. They are both tough and relatively inexpensive.

The material properties dictate how much the cantilever can bend. This also determine how many times can it withstand the deformation.

Designing for Success

Designing a good cantilever snap joint is an art and a science. Engineers carefully consider the geometry, material, and application.

They use computer simulations to predict how the joint will behave under stress. And they prototype and test extensively.

A poorly designed snap joint can lead to premature failure. Or worse, a product that falls apart in your hands.

Beyond the Basics

There are many variations on the basic cantilever snap joint. Some have multiple hooks for increased strength.

Others incorporate features for alignment or tamper-evidence. The possibilities are endless!

Some are even designed to be adjustable. This makes them suitable for applications where tolerances are critical.

Snap Joints: A Love-Hate Relationship

Let's face it, we all have a love-hate relationship with snap joints. They're convenient. They're cost-effective. But they can also be frustrating.

But next time you hear that satisfying click, take a moment to appreciate the ingenuity of this simple yet effective mechanism.

It's a testament to the power of clever design. It's also a reminder that sometimes, the simplest solutions are the best.

The Future of Snapping

As technology advances, snap joints are evolving too. New materials and manufacturing techniques are pushing the boundaries of what's possible.

We're seeing more sophisticated designs that offer even greater strength and reliability. And maybe, just maybe, we'll finally conquer that stubborn plastic container lid.

One can dream. click

The Moral of the Story

So, the next time you encounter a cantilever snap joint, remember this: it's more than just a piece of plastic.

It's a carefully engineered solution. It's a testament to human ingenuity. And it's probably holding something important together.

Unless, of course, it breaks. Then it's just a frustrating piece of plastic. But hey, even the best designs have their limits.

And hey, sometimes a little frustration is a good thing. It keeps us on our toes.

Snapping Out of It

Hopefully, this has demystified the magic of the cantilever snap joint. It's a simple concept with a powerful impact.

From toys to technology, it's a fundamental building block of our modern world. So, embrace the click!

And remember, when all else fails, grab a screwdriver. Just kidding (mostly).
