How Many Watts Does A Welder Use

Alright, picture this: You’re super excited about your new welding project. Maybe it’s a cool metal sculpture, fixing a wobbly gate, or finally building that custom workbench you’ve been dreaming about. You plug in your shiny new (or trusty old) welder, flip the switch, and just as you touch the electrode to the metal… BAM! Total darkness. Your significant other is yelling from the other room about the fridge going out, and you’re standing there in the gloom, wondering if you just broke the house, the welder, or both.

Sound familiar? Or maybe you're just staring at your electrical panel, scratching your head, trying to figure out if your ancient wiring can even handle a welder. Either way, you've probably stumbled upon one of the most common questions in the DIY and professional welding world: "How many watts does a welder use?"

The Great Power Mystery: Why We Even Care

Let's be real, electricity isn't free, and tripping breakers is a universal annoyance. Understanding a welder's power consumption isn't just for electrical engineers; it's crucial for us mere mortals too. We're talking about:

• Preventing pesky breaker trips (and the ensuing spouse-wrath).
• Knowing if your garage wiring can handle the load.
• Sizing a generator if you're working off-grid.
• And, let's not forget, keeping that electricity bill from giving you a heart attack!

So, let's dive into this electrifying topic, shall we? Don't worry, we'll keep it as simple as possible, no advanced physics degrees required.

So, How Many Watts Does a Welder Actually Use?

Here's the frustrating but honest answer: it totally depends! Yeah, I know, not the simple number you were hoping for. It’s like asking "How much does a car weigh?" – well, is it a smart car or a semi-truck? Welders are just as varied. But fear not, my curious friend, we can definitely narrow it down and give you some solid ways to figure it out for your specific machine.

The Usual Suspects: What Sways the Wattage

Several key factors play a massive role in how much juice your welder sips or gulps:

• Type of Welder: Are we talking about a small 120V MIG welder, a powerful 240V TIG machine, or an old-school stick (SMAW) welder? Each has different power demands. Generally, TIG machines can be more power-efficient but often require higher peak current for certain tasks. Stick welders, especially older transformer types, can be real power hogs.
• Amperage Setting: This is probably the biggest factor. The higher the amperage you set your welder to, the more power it will draw. Welding thin sheet metal at 50 amps is going to use a lot less electricity than laying down a thick bead on heavy steel at 200 amps. Makes sense, right? More heat, more power!
• Duty Cycle: Ever seen "20% @ 100 Amps" on your welder? That's its duty cycle. It means the welder can operate continuously at 100 amps for 2 minutes out of every 10-minute period before needing to cool down. While you're actively welding (the "on" part of the duty cycle), it's drawing full power. But when it's resting or just sitting idle, it uses significantly less. So, if you're only making quick tacks, your average power usage will be lower than if you're running long, continuous beads.
• Material Thickness: This goes hand-in-hand with amperage. Thicker materials require more heat, which means higher amperage settings, which means more watts. Pretty straightforward!

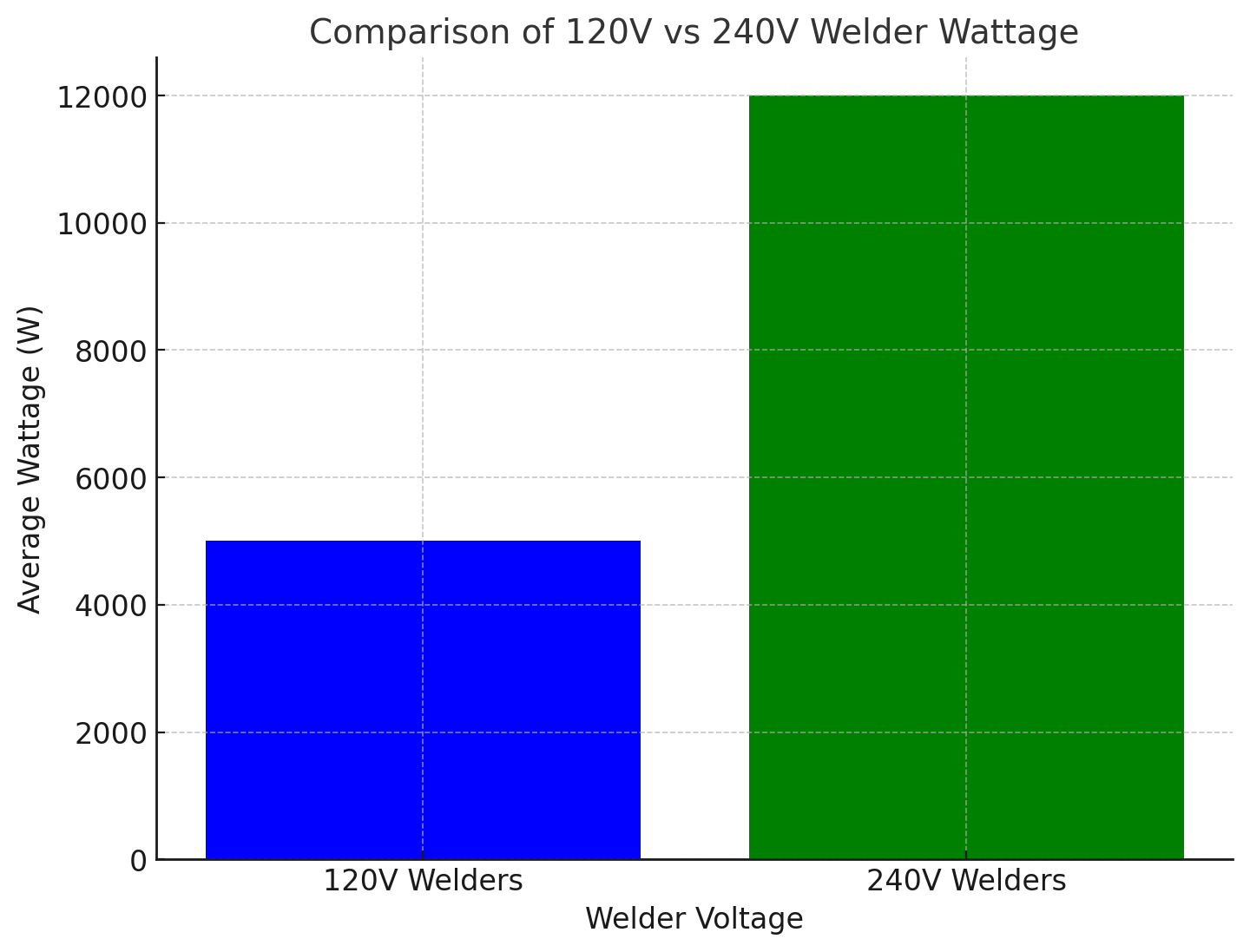

• Input Voltage & Machine Efficiency: Is your welder a 120V (standard household plug) or 240V (dryer/stove plug) machine? 240V machines are often more efficient at delivering higher power because they draw half the current for the same wattage. Modern inverter-based welders are also generally much more energy-efficient than older, heavier transformer-based machines. They deliver more power with less input current.

Getting Down to Brass Tacks: How to Figure it Out (Roughly!)

Okay, so how do you get a decent estimate for your welder? Most welders have a label, usually on the back or side, that lists their input specifications. Look for:

Input Amps (A) or Input KiloVolt-Amps (kVA).

If you find Input Amps (let's say it's 30A) and you know your input voltage (120V or 240V), you can do a quick calculation:

Watts = Volts x Amps

So, a 120V welder drawing 30 amps would be approximately: 120V * 30A = 3600 Watts (or 3.6 kW). Simple, right? Well, almost. For AC welders, there's a thing called "power factor," which means the actual watts can be a bit less than the VA (Volts x Amps). But for practical purposes like sizing breakers or generators, V x A gives you a good, safe upper estimate of the demand.

If your label shows kVA (e.g., 5 kVA), that means 5,000 Volt-Amps, which is a good stand-in for 5,000 Watts for our purposes. Always check the input rating, not just the output welding amperage!

The Real-World Ripple Effect: Why This Knowledge Matters

Don't Trip That Breaker! (Or Burn Down Your House)

Most standard household circuits are 15-20 amps at 120V. A small 120V welder might draw 20-30 amps when cranked up. See the problem? You'll trip that breaker faster than you can say "arc flash." For most serious welding, a dedicated 240V, 30-50 amp circuit is highly recommended. Seriously, consult an electrician if you're unsure about your wiring. Your safety (and house insurance policy) will thank you.

Extension Cords Are Not All Equal, My Friend

Using a thin, flimsy extension cord with a high-power welder is a recipe for disaster. The cord can overheat, melt, and even start a fire. Always use a heavy-duty, appropriately gauged extension cord (e.g., 10 or 8 gauge) that is as short as possible. Longer, thinner cords cause voltage drop and heat up more. Trust me on this one; it's not worth the risk.

Generators: Your Off-Grid Power Partner

If you're planning to weld away from grid power, you'll need a generator. And you can't just pick any old generator. You'll need one with enough surge capacity to handle the welder's startup demands and enough continuous power to keep it running. Take your welder's estimated wattage (or kVA) and aim for a generator that can comfortably supply 2-3 times that in surge, and at least 1.5 times that in continuous wattage. For a 240V welder, you'll specifically need a 240V output generator.

The Electrifying Conclusion

So, while there's no single magic number for "welder watts," you now know the key players: the type of welder, your amperage setting, and your machine's input specifications. By checking your welder's label and doing a quick calculation, you can get a solid estimate of its power demands.

Understanding this isn't just about avoiding tripped breakers; it's about working safely, efficiently, and without unexpected costs. Now go forth, my fellow metal-manipulator, and weld with confidence – and with the right power supply!
