How To Check If The Power Supply Is Working

Is your computer acting up? Maybe it’s not turning on at all. Don't panic! The culprit might be a sleepy power supply.

The Paperclip Trick: A Daring Feat

First, unplug the power supply from everything. This is where the fun begins. Grab a trusty paperclip.

Bend the paperclip into a U-shape. You’re aiming for a makeshift jumper wire. Get ready for some electrical gymnastics!

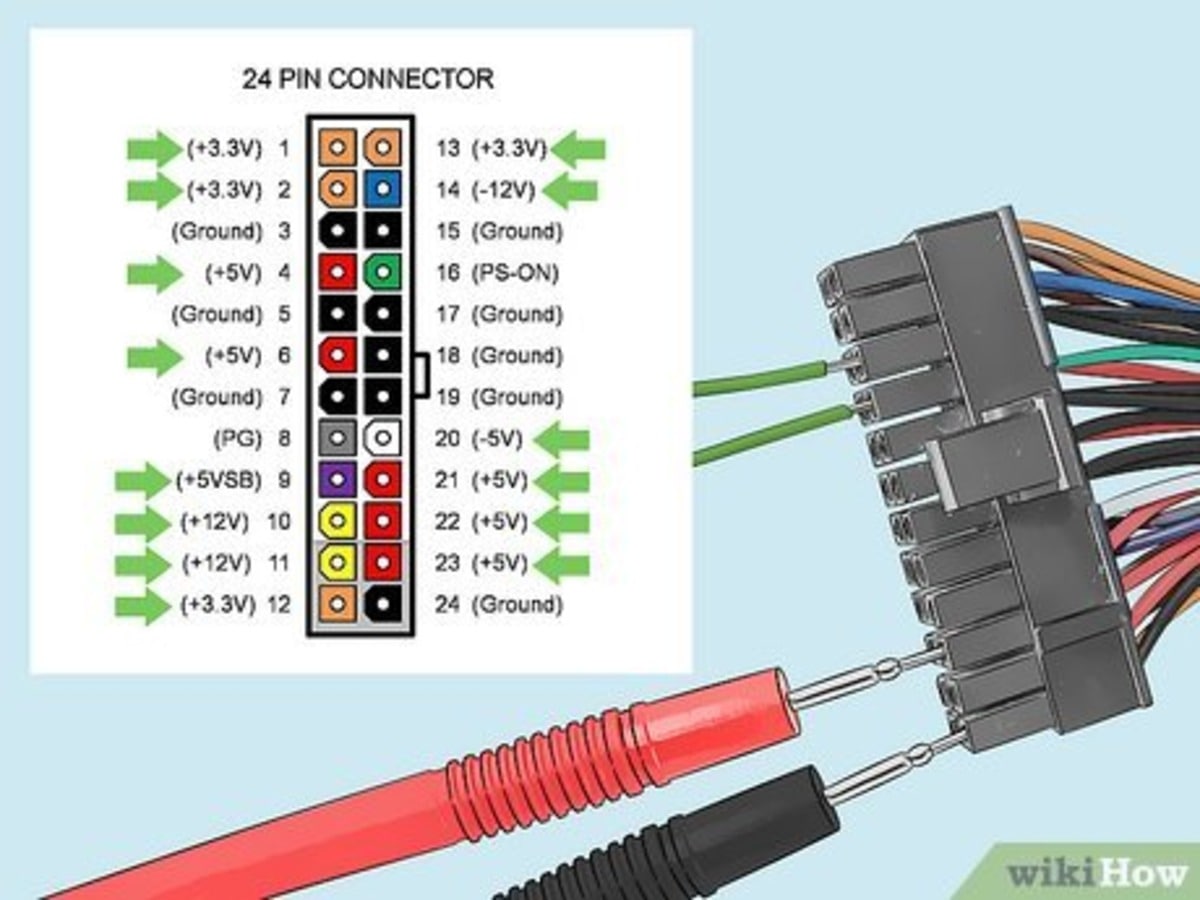

Look at the 24-pin connector. This is the big one that usually plugs into your motherboard. Find the green wire and any black wire right next to it.

Carefully insert each end of the paperclip into the green wire slot and the black wire slot. Make sure it’s a snug fit. This is your moment of truth!

Plug the power supply into the wall. Now, flip the power switch on the power supply to the "on" position.

Listen closely! Did the fan spin? If so, congratulations! Your power supply is likely alive and kicking.

No fan spin? Uh oh. It might be time for a new one. Don't worry, it happens to the best of us!

The Multimeter Method: Unleash Your Inner Electrician

Want to get a little more technical? Grab a multimeter. This cool tool measures voltage. It's like a detective for electricity!

Unplug the power supply and set your multimeter to measure DC voltage. Usually 20V is a good range to start with.

Plug the power supply back into the wall. Turn it on. Get ready to probe!

Find a spare Molex connector (the ones with four pins in a row). These are often used for older hard drives or fans.

Insert the black multimeter probe into the black wire slot on the Molex connector. This is your ground.

Now, insert the red probe into the yellow wire slot. This should read around +12V.

Next, move the red probe to the red wire slot. This should read around +5V.

Finally, try the orange wire slot. You should see around +3.3V here.

Are your readings close to these values? Hooray! Your power supply is probably doing its job.

Readings way off? Or no readings at all? Time to say goodbye to your old power supply.

The "Borrow a Friend's" Test: The Ultimate Social Experiment

Got a friend with a working computer? Even better if they have a spare power supply. Time to call in a favor!

Ask to borrow their power supply. Explain your situation (and maybe offer them pizza for their troubles). This is all about teamwork!

Carefully disconnect your old power supply. Install your friend's borrowed power supply in your computer.

Cross your fingers and try turning on your computer. Does it work? If yes, your old power supply was definitely the problem. You've solved the mystery!

If it still doesn't work, the problem lies elsewhere. Time to investigate other components. Don't lose hope!

The Visual Inspection: Sherlock Holmes Time

Sometimes, the problem is staring you right in the face. Time to channel your inner Sherlock Holmes. Grab a flashlight!

Unplug the power supply and open up your computer case. Take a good look at the power supply.

Do you see any bulging capacitors? These look like tiny cans that have swollen up. That's a bad sign.

Are there any burn marks or scorch marks? Another red flag! These indicate overheating or electrical damage.

Sniff around. Do you smell anything burnt? This is a dead giveaway that something is wrong.

If you see any of these signs, don't use the power supply! It's probably unsafe.

The Fan Test: Listen Carefully

The power supply fan helps keep things cool. A malfunctioning fan can lead to overheating. Let's give it a listen!

With your computer running, listen to the power supply fan. Does it sound smooth and quiet?

Or does it sound like a tiny helicopter taking off? Loud grinding noises can indicate a failing fan.

Is the fan spinning at all? If it's completely stopped, that's a problem. Overheating is a serious risk.

A noisy or non-spinning fan might not immediately mean the power supply is dead. But it's a warning sign. Keep an eye on it!

The "Smell Test": Trust Your Nose

This one is simple but effective. Your nose can be a powerful diagnostic tool. Let's put it to the test!

Turn off your computer and unplug the power supply. Give it a good sniff. Does it smell normal?

Or do you detect a distinct burnt or electrical odor? That's a sign of trouble. It means components inside might be fried.

A burning smell is never a good sign with electronics. If you smell something funky, replace the power supply immediately.

The Voltage Monitor: A Software Solution

Believe it or not, software can help diagnose power supply problems. There are programs that monitor voltage levels. Technology is amazing!

Download and install a hardware monitoring program. Examples include HWMonitor, CPU-Z, or AIDA64. There are many free options available.

Run the program and look for voltage readings related to your power supply. These readings are usually labeled as +12V, +5V, and +3.3V.

Keep an eye on these readings while your computer is under load. Are they stable and within the expected range?

If the voltages fluctuate wildly or drop below the acceptable range, your power supply might be struggling.

The Overload Test: Push It to the Limit (Carefully!)

This test is a bit riskier, so proceed with caution! The goal is to see how your power supply handles a heavy load.

Run a demanding game or a benchmark program. This will put a strain on your system, including the power supply.

While the game or benchmark is running, keep an eye on your computer. Does it suddenly shut down or freeze?

Sudden shutdowns under load can indicate that your power supply is failing to deliver enough power. It's reaching its limit.

If your computer passes the overload test without any issues, your power supply is probably in good shape. But remember, this test can stress your system.

The Stability Test: Long-Term Monitoring

Sometimes, power supply problems are subtle and only appear after extended use. A stability test can help uncover these issues.

Run a stability test program like Prime95 or FurMark. These programs are designed to stress-test your CPU and GPU, respectively.

Let the test run for several hours, or even overnight. Monitor your computer for any signs of instability, such as crashes or freezes.

If your computer remains stable throughout the test, your power supply is likely reliable. But if you encounter problems, it might be time for a replacement.

Trust Your Gut: The Intuition Factor

Sometimes, you just have a feeling that something is wrong. Don't ignore your intuition! It can be surprisingly accurate.

Has your computer been acting strangely lately? Are you experiencing random crashes or unexplained errors?

Have you noticed any unusual noises coming from your computer case? These could be subtle signs of a failing power supply.

If you have a nagging feeling that your power supply is the problem, it's worth investigating. It's better to be safe than sorry!

The Final Verdict: When to Replace

So, you've done all the tests. You've gathered all the evidence. Now it's time for the final verdict.

If your power supply fails any of the tests, or if you suspect it's failing, it's best to replace it. A faulty power supply can damage other components.

Replacing a power supply is relatively easy and inexpensive. It's a worthwhile investment to protect your computer.

Don't wait until your power supply completely dies. Replace it before it causes any further problems. Your computer will thank you!
