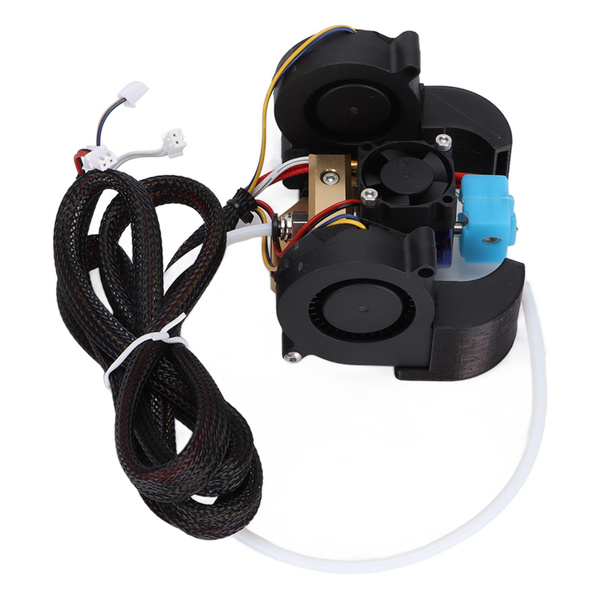

How To Fix Heat Sink On 3d Printer Nozzle

Hey there, fellow 3D printing enthusiasts! Ever had that moment when your printer starts acting up, seemingly out of nowhere? Maybe it's stringing like crazy, or your prints are warping like a Dali painting? Well, chances are, your heat sink might be to blame. Don't panic! Fixing it is often easier than assembling IKEA furniture, and way more satisfying.

But first, what is a heat sink, and why should you care? Think of it like the radiator in your car. Your nozzle gets screaming hot melting the plastic, but the heat needs to stay there. The heat sink's job is to draw heat away from the upper parts of your hot end, preventing the filament from softening prematurely. If it's not doing its job, things get messy. Imagine trying to ice skate on slush – that's kind of what your filament is experiencing!

Identifying the Problem: Is Your Heat Sink Acting Up?

So, how do you know if your heat sink is the culprit? Here are a few tell-tale signs:

• Stringing: This is when you get those annoying little strands of plastic between printed parts. It's like your printer is trying to knit a spider web.
• Heat Creep: This happens when the heat travels up the hot end, causing the filament to soften before it reaches the melting zone. Think of an ice cream cone melting from the top down on a hot summer day.
• Clogging: If the filament softens too high up, it can clog the nozzle. It's like a traffic jam in your hot end!
• Warping: Uneven cooling can lead to warping, especially with materials like ABS. Your perfect, flat print suddenly looks like it's been through a washing machine.

Notice any of these? Time to get your hands dirty (figuratively, mostly!).

Troubleshooting Your Heat Sink: The Detective Work

Okay, Sherlock Holmes, let's investigate! The most common heat sink issues are:

• Loose Connection: The heat sink might not be properly attached to the hot end. Think of it like a wobbly table leg – it's just not doing its job.
• Dust and Debris: Dust bunnies and filament scraps can accumulate on the heat sink, insulating it and reducing its effectiveness. Imagine trying to cool yourself down while wearing a thick winter coat in July.
• Fan Failure: Most heat sinks have a little fan to help dissipate heat. If the fan isn't spinning, the heat sink is basically just a pretty piece of metal.
• Dried Thermal Paste: Thermal paste helps transfer heat from the hot end to the heat sink. Over time, it can dry out and lose its effectiveness. Think of it like old, crusty peanut butter – not very helpful.

The Fix: Getting Your Heat Sink Back in Shape

Alright, let's get down to brass tacks. Here's how to tackle those heat sink problems:

1. Tighten Connections: First, make sure the heat sink is securely attached to the hot end. Use a wrench or pliers to tighten any screws or fittings, but be careful not to overtighten and strip the threads. It should be snug, not strangled!
2. Cleanliness is Key: Grab a can of compressed air and blow away any dust and debris from the heat sink. A soft brush can also help remove stubborn grime. Think of it as giving your heat sink a spa day.
3. Fan Check: Make sure the heat sink fan is spinning freely. If it's not, check the wiring and connections. If the fan is dead, you'll need to replace it. Luckily, they're usually pretty cheap.
4. Thermal Paste Refresh: This is a bit more involved, but often necessary.
   • Power down the printer and let the hot end cool completely! Don't be a hero.
   • Carefully remove the heat sink.
   • Clean off the old thermal paste from both the hot end and the heat sink using isopropyl alcohol and a lint-free cloth.
   • Apply a small amount of fresh thermal paste to the hot end. Think of it like applying a tiny drop of moisturizer – a little goes a long way.
   • Reattach the heat sink securely.

Important Note: Always power off your printer and let the hot end cool completely before working on it. Safety first!

Prevention is Better Than Cure

Want to avoid future heat sink headaches? Here are a few preventative measures:

• Regular Cleaning: Give your heat sink a quick cleaning every now and then to prevent dust buildup.
• Quality Filament: Cheaper filament can sometimes leave more residue, clogging up your hot end and affecting heat sink performance.
• Proper Cooling Settings: Make sure your cooling settings are appropriate for the material you're printing.

So there you have it! Fixing your heat sink isn't rocket science. With a little troubleshooting and some elbow grease, you can get your 3D printer back to spitting out perfect prints. Happy printing!
