Low Voltage Garage Door Wiring

Alright, let's talk about something that's probably humming along quietly in the background of your life, doing its job without much fuss: your garage door wiring. Sounds a bit dry, right? But hold on a sec! We're not diving into the deep end of electrical engineering here. We're talking about the friendly, low-key side of things – the world of low voltage.

Imagine your garage door opener is like a well-oiled machine (hopefully!). It has a big motor, sure, but it also has a brain and a nervous system. And a lot of that nervous system, especially the parts you interact with or that keep you safe, runs on wonderfully simple, easy-going low voltage. Think of it as the chill cousin to the main electrical panel in your house.

What Even IS Low Voltage, Anyway?

Okay, before you picture sparks flying, let's clarify. When we say "low voltage" in the context of your garage door, we're talking about anything that's generally under 30 volts. To put that into perspective, your phone charger puts out around 5-20 volts. Your car battery is 12 volts. The cute little string of LED fairy lights you hang for ambiance? Also low voltage. See? Totally approachable.

The main power cord for your garage door opener, the one that plugs into the wall socket? That's your standard 120-volt household electricity. But once that power gets into the opener unit itself, it often gets a special little "step-down" transformer that brings the voltage way down for specific parts of the system.

Why Does Your Garage Door Use Low Voltage?

Great question! It's not just to make our lives easier, though that's a big perk. The main reason is for the parts that need to be safe to handle and often run long distances, like the wires for your wall button or those crucial safety sensors.

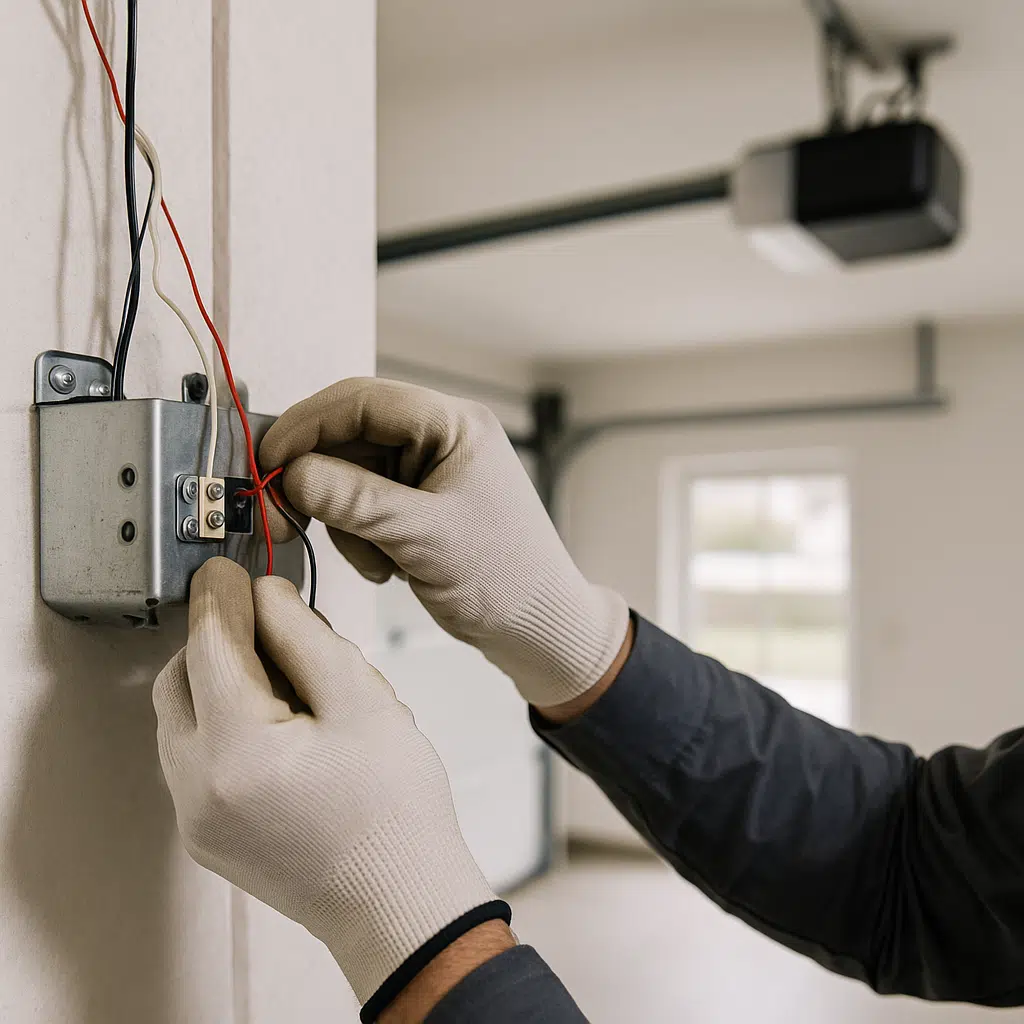

• The Wall Button: That trusty button you press to open or close the door from inside your garage? It’s usually connected by a couple of skinny low-voltage wires.
• Safety Sensors: Ah, these little guardians! Those two small "eyes" at the bottom of your garage door opening? They shoot an invisible beam across the entryway. If something breaks that beam while the door is closing (like your kid's bike, or, heaven forbid, a foot!), the door automatically reverses. These critical safety devices are absolutely powered by low voltage.
• Keypads and Other Accessories: Sometimes external keypads or other smart features also tap into this low-voltage network.

Why Should You Care? (Besides the "No Zaps" Thing)

This is where the fun comes in! Understanding a little about low voltage wiring for your garage door is like having a secret superpower for basic home maintenance.

1. It's Safe (Really!)

This is the big one. Unlike tinkering with the main electrical panel (which, please, for the love of all that is holy, call a pro for!), working with low voltage is generally super safe. You're not going to get a nasty zap or accidentally turn your hair into a static-filled science experiment. It’s more like playing with a toy train set than wiring up a house.

2. It's DIY Friendly (Hello, Weekend Warrior!)

Got a broken safety sensor wire? Did your wall button suddenly stop working? Often, the fix for these issues involves tracing and potentially replacing a low-voltage wire. Because it's low voltage, the wires are usually thin, easy to work with, and don't require fancy tools. You might just need some wire cutters, a screwdriver, and a bit of confidence. Imagine the satisfaction of fixing something yourself without needing to call a technician! It’s like assembling IKEA furniture, but for your garage door.

3. Troubleshooting Becomes a Breeze (Mostly!)

Ever had your garage door suddenly decide it doesn't want to close, but instead keeps going back up? Nine times out of ten, the culprit is those little safety sensors. They're probably misaligned, dirty, or have a damaged low-voltage wire. Knowing that these components run on low voltage can help you quickly pinpoint the problem. You'll check the sensors, clean their "eyes," and make sure their wires are intact, rather than immediately assuming your entire opener is kaput. You'll feel like a detective solving a minor mystery!

4. Adding Accessories is Simpler

Thinking about adding a fancy new smart garage door controller or an external keypad? Many of these cool gadgets connect using low-voltage wiring. Understanding how they tap into your existing system makes installation much less intimidating.

A Little Story (or a "What If" Scenario)

Picture this: It's Saturday morning, you're all set to head out for a fun family outing, but your garage door stubbornly refuses to close. It goes down a little, then pops right back up. Frustrating, right? You sigh, thinking of a costly service call. But then, you remember our little chat about low voltage. You glance at the safety sensors. Lo and behold, a mischievous squirrel (or perhaps a runaway garden hose) has nudged one of them slightly. A quick alignment, a gentle wipe, and voila! The door hums shut, and you're off on your adventure, feeling like a genius. All thanks to knowing a little about low voltage.

So, next time you glance at your garage door, give a little nod to those unassuming low-voltage wires. They're the unsung heroes, keeping things safe, making DIY fixes possible, and generally ensuring your garage door life is a little bit smoother. It's a small detail, but knowing about it can make a surprisingly big difference!
