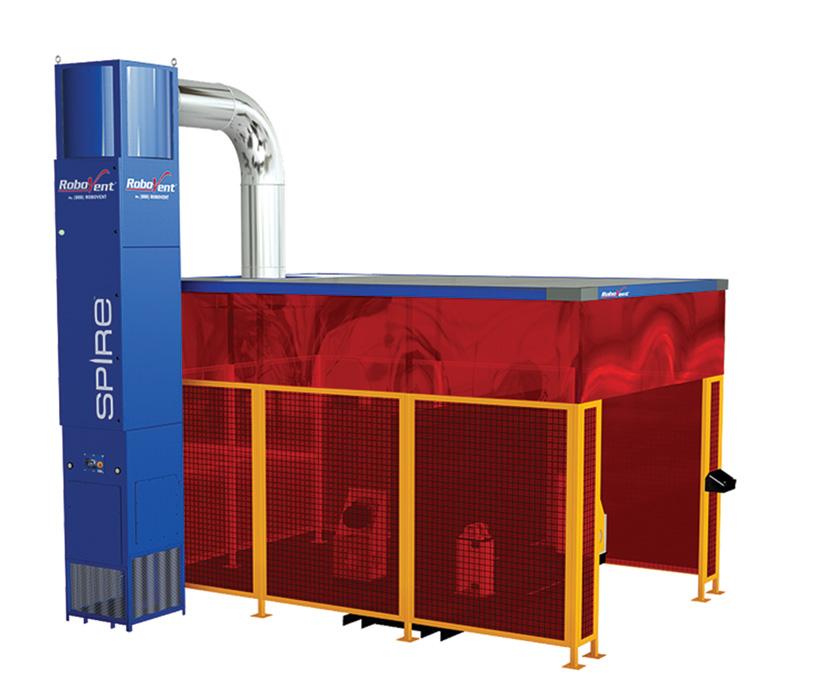

Robotic Welding Fume Extraction Systems

So, there I was, sipping my latte, when my friend Barry, a seasoned metalworker, starts ranting about… welding fumes. Now, Barry isn't one for flowery language, so his description involved words I can't repeat. But the gist was clear: welding fumes are bad news bears. And what's worse? Automated welding robots were just churning them out like a metal-scented fog machine gone wild. That's when he dropped the term "robotic welding fume extraction systems." It sounded like something out of a sci-fi movie, but apparently, it's a real, and rather crucial, piece of technology.

Imagine this: you've got your super-efficient welding robot, zipping and zapping, churning out perfect welds faster than you can say "arc welding." But what’s happening alongside all that perfectly automated artistry? A cloud of nasty stuff – welding fumes. These fumes contain all sorts of delightful (not!) particles like metal oxides, silicates, and fluorides. Breathing them in? Not recommended. It's like inviting a tiny, metal-loving dragon to take up residence in your lungs.

The Robot Uprising... of Fumes!

The problem is, while robots are great at precision and speed, they're not exactly known for their self-awareness regarding air quality. They're too busy making things! That's where the extraction systems come in. Think of them as the tiny, robotic overlords' personal air purifiers. These systems are designed to suck up the fumes before they have a chance to spread and cause havoc.

Now, you might be thinking, "Okay, I get it. Fumes bad. Extraction good. But what exactly are these extraction systems?" Well, buckle up, because it's more exciting than it sounds. (Okay, maybe slightly more exciting than watching paint dry.)

These systems generally consist of a few key components:

• The Capture Device: This is the part that gets up close and personal with the weld. It can be a hood, a nozzle, or even part of the welding torch itself. Think of it as a tiny vacuum cleaner following the robot around, eagerly gobbling up the fumes.
• The Ductwork: This is the highway system for the fumes, transporting them away from the welding area. It's like the Autobahn, but for microscopic particles of doom.
• The Filtration System: This is where the magic happens. The fumes are passed through filters that trap the harmful particles, leaving you with (relatively) clean air. It's like a tiny, industrial-strength lung, except it doesn't cough.
• The Fan/Blower: This provides the suction power needed to pull the fumes through the system. It's the muscle behind the operation, ensuring that everything flows smoothly.

Types of Extraction: More Than Just a Vacuum Cleaner

There are a few different types of robotic welding fume extraction systems, each with its own pros and cons. It's not a one-size-fits-all situation. Choosing the right system depends on the specific welding application, the type of fumes being produced, and the size of the work area.

• On-Torch Extraction: This is where the extraction nozzle is integrated directly into the welding torch. It's like giving the robot a built-in snorkel, allowing it to breathe easy while it works. Very efficient, but can sometimes interfere with maneuverability.
• Hooded Extraction: This involves placing a hood above the welding area to capture the fumes as they rise. It's like creating a giant, fume-sucking umbrella. Good for larger areas, but less effective at capturing fumes close to the weld.
• Backdraft/Side Draft Extraction: These systems use strategically placed vents to draw fumes away from the welding area. It's like having a team of invisible fume wranglers, gently guiding the particles away.

Why Bother? The Serious Side of Things

Okay, all this talk about robotic overlords and fume wranglers is fun, but there's a serious reason why robotic welding fume extraction systems are so important. Welding fumes can cause a whole host of health problems, from short-term irritation to long-term lung damage, and even cancer. No joke. Protecting workers is not only the right thing to do, but it also makes good business sense. Happy, healthy workers are more productive, and you avoid costly lawsuits and regulatory fines.

Plus, a clean working environment just looks better. Imagine showing off your state-of-the-art robotic welding cell to a potential client, only to have them choking on fumes. Not exactly the image you want to project.

The Future is Clear (of Fumes!)

The good news is that robotic welding fume extraction technology is constantly improving. Manufacturers are developing more efficient filters, more compact capture devices, and smarter systems that can automatically adjust to changing welding conditions. So, the next time you see a welding robot in action, take a moment to appreciate the unsung heroes – the fume extraction systems – that are keeping the air clean and the workers safe. They're the silent guardians of the welding world, protecting us from the metal-scented dragon breath. Now, if you'll excuse me, I'm going to go find Barry and tell him I finally understand his rant. And maybe buy him another latte. He deserves it.
