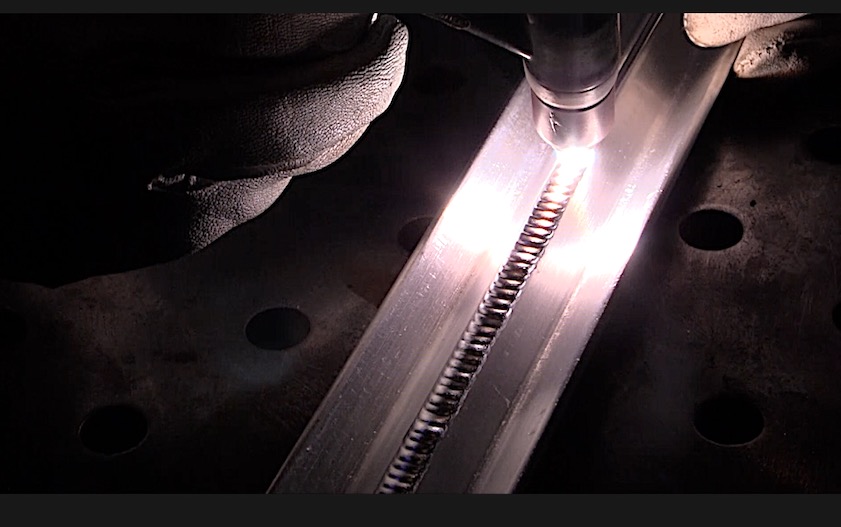

Tig Welder Settings For Aluminum

Hey there, my fellow metal magician! Grab a mug, settle in. We need to chat about something a little... electrifying. Yeah, you guessed it: TIG welder settings for aluminum. Sounds like a mouthful, right? Almost like trying to herd cats while juggling flaming chainsaws. But honestly, it’s not as scary as it sounds. Once you get the hang of a few key dials, you’ll be laying down those beautiful stacks of dimes like a pro. Pinky swear!

So, you’ve decided to tackle aluminum with your TIG machine. Good for you! It’s a rewarding material, but it does have its own personality quirks. Think of it like a finicky gourmet chef – it demands specific ingredients and temperatures. Let's break down those mysterious settings, shall we? No more guessing games or throwing darts at the control panel!

The AC/DC Dilemma: Why AC is Your Best Friend

First things first, for aluminum, we’re almost always going to be on AC (Alternating Current). Forget DC for a second. Why AC, you ask? Well, aluminum has this super annoying, super tough oxide layer on its surface. It's like a tiny, invisible armor that melts at a much higher temperature than the actual aluminum underneath. Tricky, right?

AC current is like a superhero with two powers: one half of the cycle zaps away that stubborn oxide layer (the cleaning action), and the other half delivers the heat to melt the aluminum itself (the penetration). Without AC, you’d just be poking at that oxide layer all day, getting nowhere fast. So, AC: non-negotiable for shiny aluminum welds!

Amperage: How Much Oomph Do You Need?

Alright, let’s talk power! Amperage is essentially how hot your arc gets. Too little, and you’ll just tickle the metal, making it blob up like melted cheese. Too much, and you’ll blow a hole right through it faster than you can say “oopsie!” It’s a delicate balance, but there’s a good starting point.

A super common rule of thumb for aluminum TIG is about 1 amp per thousandth of an inch of material thickness. So, if you’re welding 1/8 inch aluminum (which is 0.125 inches), you’re looking at roughly 125 amps. But here's the kicker: this is just a starting point! You’ll often need a little more for aluminum than steel, because aluminum dissipates heat like crazy. It sucks it up and spreads it out, making the base metal act like a giant heatsink. Don’t be afraid to crank it up a bit if it feels cold. Your foot pedal is your best friend here, giving you dynamic control over the heat when you need it most!

Frequency: Sharpening Your Focus

Next up, AC Frequency, usually measured in Hertz (Hz). This setting dictates how many times per second your current alternates between positive and negative. Think of it like this: higher frequency equals a tighter, more focused arc. A lower frequency gives you a wider, softer arc.

For most general aluminum welding, you’ll typically find yourself in the 120-200 Hz range. If you want to weld in a tight corner or get really precise, bump up that frequency! It's like zooming in on your welding pencil. But if you’re trying to bridge a gap or want a slightly wider bead, you might dial it down a touch. Play around with it; you’ll see the difference in your arc’s behavior instantly!

AC Balance: The Cleaning vs. Penetration Showdown

Okay, this one is perhaps the most crucial setting for aluminum TIG. AC Balance (sometimes called "cleaning action" or "EN/EP balance") controls the ratio of how much time your AC cycle spends in cleaning mode versus penetration mode. Remember that pesky oxide layer? This setting is your secret weapon against it!

A lower percentage (e.g., 60-70%) means more cleaning action, giving you a wider, frosty etch zone around your weld. This is great for dirty aluminum or if you’re having trouble with contamination. But be warned: too much cleaning action can erode your tungsten and heat it up unnecessarily. On the flip side, a higher percentage (e.g., 75-85%) means more penetration and a narrower, hotter arc with less cleaning. This is usually preferred for cleaner material and maximizing weld penetration.

Most welders start somewhere in the 70-75% range for AC Balance and adjust from there. If your weld puddle looks like it’s got a scummy film on it, you probably need more cleaning (lower the balance number). If your tungsten is melting like an ice cream cone on a hot day, you might have too much cleaning action (increase the balance number). It’s a delicate dance between getting a clean puddle and not destroying your tungsten.

Tungsten Type and Size: Your Arc’s Pencil Point

For AC aluminum welding, you’ll want a 2% Lanthanated (gold band) or Zirconiated (brown band) tungsten. Pure tungsten (green band) used to be common, but the newer alloys are much more versatile and durable. And remember, for AC, you want a balled tip on your tungsten – not a sharp point like you’d use for steel. The AC current naturally forms this ball, but you can pre-ball it at a low amperage on a scrap piece.

As for size, generally, the bigger the tungsten, the more amperage it can handle. A common starting point for most hobbyist welding on 1/8 inch aluminum is 3/32 inch (2.4mm) tungsten. Don't go too small, or it'll burn back quickly; don't go too big, or it'll be hard to form a stable arc at lower amperages.

Shielding Gas: Argon, Always Argon!

This one's easy: 100% pure Argon. No fancy mixtures needed for aluminum TIG. Keep your gas flow rate in the 15-25 cubic feet per hour (CFH) range. Too little, and your weld will get contaminated (hello, black soot!). Too much, and you’re just wasting gas and potentially introducing turbulence, which can also contaminate your weld. Listen for a smooth, steady hiss.

Filler Rod: The Right Recipe

Typically, you’ll use 4043 aluminum filler rod for general-purpose welding. It flows beautifully and is very common. If you need something stronger or heat-treatable, 5356 is another popular choice. Match the diameter of your filler rod to the thickness of your material, roughly, or slightly smaller than your tungsten diameter. Don't try to force a big rod into a small puddle!

The Foot Pedal: Your Maestro Baton

Finally, the magical foot pedal. This isn’t really a "setting" on your machine, but it’s how you control your settings dynamically. It lets you dial up the heat to start the puddle, then back off as the metal heats up, preventing blow-through. Mastering the foot pedal is like learning to drive a stick shift – it takes practice, but once you get it, you’ll wonder how you ever lived without it. Gentle, consistent pressure is the key!

See? Not so terrifying after all, right? It’s just a matter of understanding what each dial does and how it affects your arc and puddle. Don’t be afraid to experiment on scrap pieces. Take notes! What worked? What didn't? What did your puddle look like? What did your tungsten look like? Every weld is a learning opportunity.

So, go forth, my friend, and conquer that aluminum! With a little patience, practice, and these tips, you’ll be laying down those shiny, consistent beads in no time. You got this!
