What Does Max Head Mean On A Pump

Okay, settle in, grab your beverage of choice. We need to talk about pumps. Specifically, that slightly intimidating, utterly baffling phrase you often see plastered on the side of them: Max Head. Sounds like a villain from a forgotten 80s movie, doesn't it? Or maybe the result of one too many late-night study sessions? Trust me, it’s neither.

For years, I’d stare at it, a faint frown creasing my brow as I pondered my sump pump, my pond pump, or that fancy new aquarium filter. Max Head. What did it mean? Was it the maximum amount of heads the pump could process? (Probably not.) The greatest headache it could give you during installation? (Highly probable, but also not the technical definition.)

So, What's the Big Deal with "Head"?

Let’s strip away the engineering jargon for a second. Imagine you've got a bucket of water. Now, imagine trying to lift that water straight up. Your arms are doing work against gravity, right? That effort, that vertical distance you’re fighting, is essentially what we mean by "head" in pump terms. It's a way to measure the energy a pump adds to the fluid, expressed as a vertical column of that fluid.

It’s a bit like saying, "This super-soaker can shoot water ten feet high!" You’re not talking about how much water it shoots, or how fast, but simply how high it can overcome gravity. That "ten feet high" is its head.

Enter the "Max": The Pump's Ultimate Showdown

Now, add the "Max" to "Head," and suddenly it clicks into place. Max Head on a pump means the maximum vertical distance—the absolute highest—a pump can push water straight up, if it were pushing against nothing but gravity itself. Think of it as the pump’s ultimate high jump record.

Picture this: your pump is flexing its metaphorical biceps, pushing water straight up a perfectly vertical pipe. No bends, no kinks, no friction from rough pipe walls, no little gnomes stealing energy. It’s a pump’s ideal, unhindered Olympic performance. And here's the kicker: this "Max Head" is typically measured when there’s zero flow. Yes, you read that right. The pump is working its hardest just to hold that column of water up, not actually moving it anywhere at that specific peak measurement.

It’s like me saying I can bench press 300 pounds. Sure, I could, if I was only lifting it one inch off the rack and holding it there with a grimace. But if you ask me to do reps, suddenly that number drops like a hot potato. Same principle for pumps.

Why Does This Matter to My Fish Pond (or Sump Pump)?

Glad you asked! Because your real-world setup is never a perfect, friction-free vertical pipe. You've got pipes, elbows, valves, maybe even a fancy filter that adds resistance. All these things create what engineers lovingly call "system head" or "dynamic head." It’s basically all the resistance your pump has to overcome to get the water where it needs to go.

If your pump’s stated Max Head is, say, 10 feet, and you need to lift water 5 feet vertically, but your pipes and fittings add another 3 feet of equivalent resistance (known as "friction head"), your pump is really fighting an 8-foot battle. That leaves you with 2 feet of "head" to spare for actual water flow. If your total system head is 12 feet, and your pump’s max is 10 feet… well, you’re not getting water where you need it, unless you enjoy watching it dribble sadly from the spout.

This is why you can’t just buy a pump that says "Max Head: 10 ft" and expect it to magically push water to the top of your 9-foot fountain with gusto. It’ll probably just sigh theatrically and maybe manage a pathetic gurgle.

The Surprisingly Universal Language of Head

Here’s a fun, slightly brain-bending fact: "Head" is measured in units of length (feet, meters), not pressure (PSI, bar). This is actually super clever! Why? Because if a pump can lift 10 feet of water, it can also lift 10 feet of oil, or 10 feet of orange juice (don’t try that at home, please). The actual pressure it generates will be different because oil is less dense than water, but the height it can achieve is the same. This makes "head" a universal way to compare pump performance regardless of the fluid’s density. Mind. Blown.

So, when an engineer talks about 10 feet of head, they're talking about pure potential energy, regardless of whether it's for a majestic waterfall or just draining a flooded basement. It's the pump's raw lifting power, abstracted from the liquid's specific weight.

The Takeaway: Don't Just Max Out!

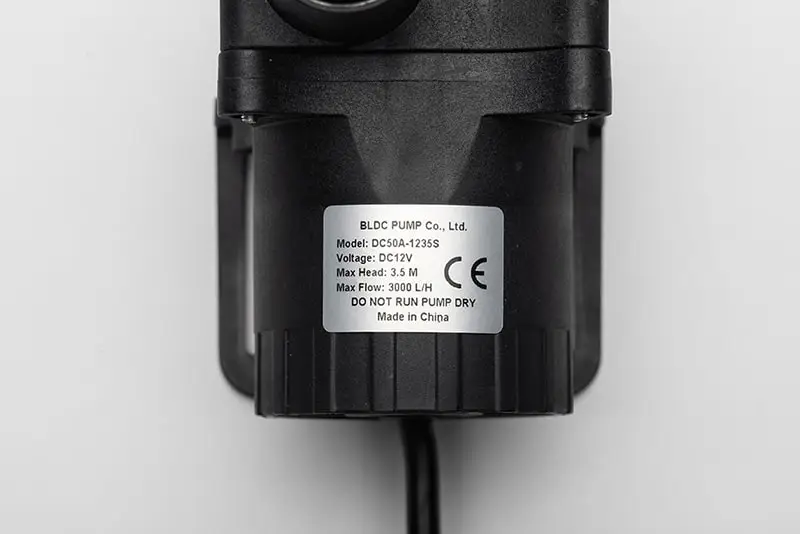

Next time you're staring at a pump label and see Max Head, you'll know it's not some ominous warning, but a crucial piece of information. It tells you the pump's absolute maximum lifting capability under ideal, no-flow conditions. Always remember to factor in your actual vertical lift plus all the resistance from your pipes, fittings, and filters.

Choose a pump whose Max Head is significantly higher than your total estimated system head, especially if you want decent flow. Otherwise, you’ll end up with a very tired, overworked pump and a trickle instead of a gush. And nobody wants a trickle, right? Except maybe during a particularly awkward silence at a party. But that's a story for another day. You're welcome, fellow pump whisperer!
