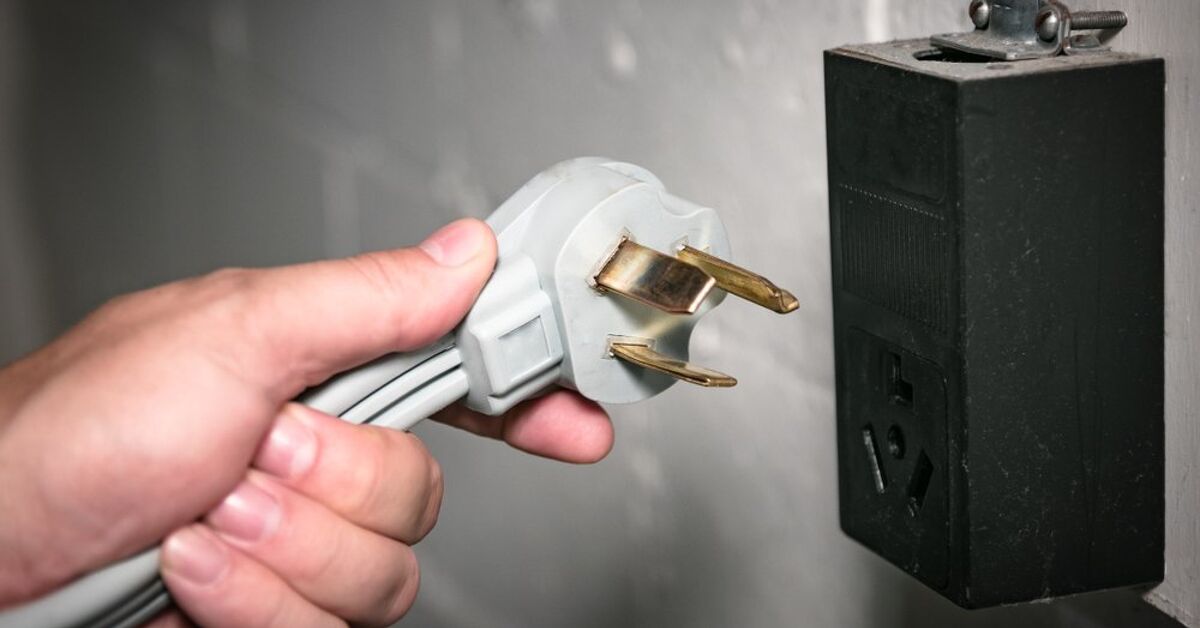

Wire Size For 30 Amp 240 Volt Circuit

Ever wondered how that electric oven in your kitchen gets all that juice it needs to bake the perfect pie? Or how your dryer manages to transform a pile of wet clothes into fluffy, warm comfort? It all boils down to the magic of electrical circuits, and a crucial piece of the puzzle is the wire size. Today, let's dive into the world of 30 amp, 240 volt circuits – a common setup for appliances that need a bit more oomph.

Think of electricity like water flowing through pipes. A small pipe can only carry so much water, right? Similarly, a small wire can only handle so much electrical current (measured in amps). If you try to force too much water through that small pipe, things are going to get messy – maybe even burst! And in the electrical world, that "burst" could mean a fire. Yikes!

So, What Wire Size Are We Talking About?

For a 30 amp, 240 volt circuit, the general rule of thumb is to use 10 AWG (American Wire Gauge) copper wire. But why 10 AWG? What does that even mean?

AWG is basically a standardized way of measuring wire diameter. The lower the number, the thicker the wire. It's a bit counterintuitive, I know! Think of it like golf – the lower your score, the better. In the wire world, the lower the AWG, the more current the wire can safely carry.

Imagine your electrical wiring as a highway system. A tiny AWG wire is like a narrow country lane; it can only handle a few cars at a time. A thick, low AWG wire, on the other hand, is like a multi-lane interstate, capable of handling a massive amount of traffic. Our 10 AWG wire is a nice, reliable two-lane highway – perfect for that 30 amp load.

Why is the Wire Size So Important?

Here's the deal: wires have resistance. As electricity flows through a wire, some of that electrical energy gets converted into heat. A thicker wire has less resistance, so it generates less heat. A thinner wire, forced to carry a high current, will heat up a lot. This is where the danger comes in.

Overheated wires can melt their insulation, leading to short circuits and potentially starting a fire. Not cool. Using the correct wire size is absolutely crucial for safety and preventing electrical disasters.

What About Aluminum Wire?

Good question! While copper is the most common choice, you can use aluminum wire. However, aluminum has higher resistance than copper, so you'll need a thicker gauge wire to carry the same amount of current safely. For a 30 amp circuit, you'd typically need 8 AWG aluminum wire.

Think of copper as a super-efficient delivery truck and aluminum as a slightly less efficient one. To deliver the same amount of goods (electricity), you need a bigger aluminum truck.

Don't Forget About Those Terminals!

Even if you have the right wire size, it’s critical to ensure your wiring is properly connected to the circuit breaker, receptacle, and appliance terminals. Loose or corroded connections can create resistance and heat, just like using an undersized wire. Always make sure connections are clean, tight, and properly rated for the wire size you are using. Consider using an antioxidant paste on aluminum connections to prevent corrosion.

Factors to Consider Besides Wire Size

Okay, so we know 10 AWG copper is the usual suspect for a 30 amp circuit. But there are other factors to consider:

• Distance: The longer the wire run, the more voltage drop you'll experience. For long runs, you might need to upsize the wire to compensate. Think of it like trying to shout across a football field – your voice gets weaker the farther it travels.
• Conduit: Are the wires running through conduit (a protective pipe)? If so, the type of conduit and how many wires are in it can affect the wire's ability to dissipate heat.
• Local Codes: Always, always check your local electrical codes! They might have specific requirements that supersede general guidelines. Electrical codes are in place for a reason – to keep you and your home safe.

When in Doubt, Call a Pro!

Working with electricity can be dangerous if you don't know what you're doing. If you're not comfortable working with electrical wiring, or if you're unsure about anything, please call a qualified electrician. It's always better to be safe than sorry! They can ensure everything is installed correctly and meets all applicable codes. Think of it as hiring a seasoned mountain guide to navigate a tricky peak – they'll get you safely to the summit.

Understanding wire size for a 30 amp, 240 volt circuit isn't just about electrical codes; it's about safety, efficiency, and ensuring your appliances run smoothly for years to come. So, the next time you're baking a cake or drying your clothes, take a moment to appreciate the (unseen) electrical system working hard to power your life, making sure it does so safely and reliably!
